Understanding Tristimulus Values & the CIE Color System

Understanding tristimulus color values can be overwhelming. Expert guidance can simplify color measurement and help you utilize your instrumentation to its full potential. Image Source: Flickr user mckinney75402

Spectrophotometers are a commonly used tool in nearly every industry, yet this valuable technology is often under-utilized. Companies purchase color measurement equipment out of necessity and then find themselves using the bare minimum applications for the job. Understanding tristimulus values and the different geometric degrees and angles can be overwhelming, making instrument selection challenging. Well, not anymore! In this post, we will give a simple and straightforward explanation of tristimulus values and color measurement, plus provide resources that will help you choose the right instrumentation for your application needs. Finding the support you need to use your color measurement tools correctly and efficiently will ensure that you are getting the best value for your investment.

Human eye technology and color measurement

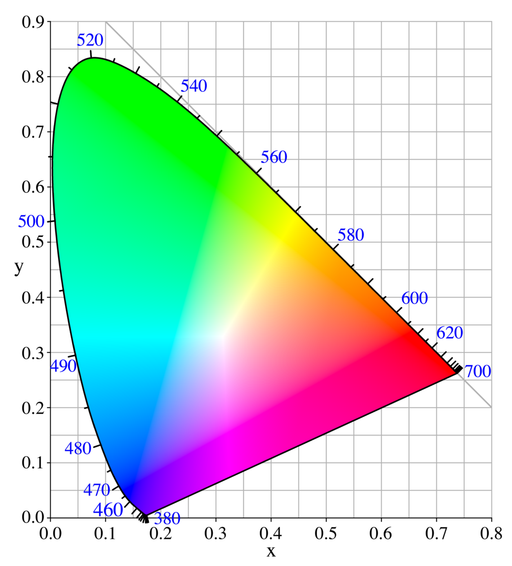

Tristimulus color is based on the three primary color receptors of the human eye and quantified into coordinate values of X,Y, and Z. Image Source: Wikimedia Commons user Sakurambo

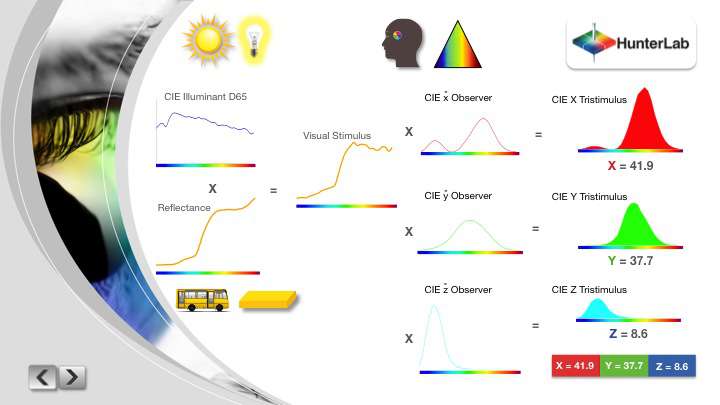

Spectrophotometers utilize human eye technology to create accurate yet objective and quantifiable color measurement values. These values can then be repeated for color quality and consistency in product development. Based on human visual perception, color measurement relies on a system of three color values which are referred to as tristimulus values.

This system mirrors the color receptors in the human eye, referred to as cone cells. Tristimulus values measure light intensity based on the three primary color values (RGB), typically represented by X, Y, and Z coordinates. The tristimulus values system is the foundation of color language, also referred to as the CIE color system, and is used to communicate precise color values around the world.

Other factors that affect color measurements

Tristimulus values are the backbone of color measurement, but many other factors can influence color perception. Variations in light sources, viewing angles, and field of view can alter visual perception; therefore color measurement instrumentation must be designed to account for these variables.

The standard field of view is the CIE 10 degree standard observer, with has been proven to be the most accurate degree of observation for matching human visual perception. Alltristimulus values are calculated from this standard degree of observation, so that manufacturers can be confident in meeting exact color specifications. Calculations are based on the XYZ tristimulus values in accordance with the type of illumination and reflectance of the sample.

Color-matching and quality regulations

The tristimulus values provide a reliable system that provides manufacturers and customers a way to communicate color preferences in order to ensure precise color matching and product compatibility. The ISO (International Organization of Standardization) utilizes these specific methods and the tristimulus value system to regulate and ensure compatibility standards between various industries. Understanding the basis of color measurement is the first step toward utilizing your color measurement instrumentation at its full potential.

Choices in instrumentation

Spectrophotometers are available in a variety of styles and types, which vary greatly depending on industry needs and regulations. HunterLab is a leader in spectrophotometric technology and has over 60 years of experience working with various industry leaders to develop to the most efficient and reliable instrumentation available. HunterLab is a trusted name in color measurement and we pride ourselves in customer support and relationships. We are here to help you understand your color measurement needs and how to utilize your instrumentation to get the most out of your investment. Contact HunterLab today to learn why more companies trust us to handle all their color measurement needs.
